Viewing: Hydraulic & Pneumatic Seals > Rod Wipers and Canned Wiper Seals > Rod Wipers|Nitrile 90 Wipers

All Pages: 1 2 3 4 5

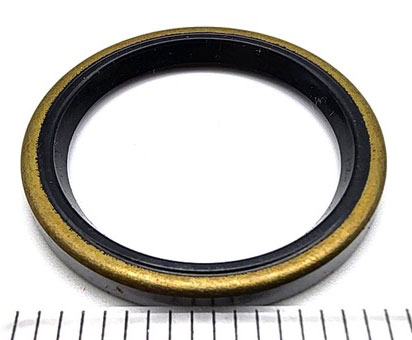

AJR Seals list of available in-stock inventory of our press-in metal clad rod wipers and have a standard Nitrile (Buna-N) 90 shore lip. Used to eliminate dust, dirt, moisture or contamination which can cause damage to cylinder walls and rods. Will extend seal life in hydraulic and pneumatic applications. The metal case offers greater life span and wear resistance.

Can be special ordered in a softer Nitrile 70 shore lip.

Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).



Other quantities, sizes and materials are available to be ordered. Use the drop down menu to check additional inventory or the link in top menu to request a quote.





There are 75 items available for purchase in this category. (15 per page)



All prices are per lot. Lot is quantity as listed. Items are not available as one (1) each (unless specified as '1-Pkg'). All prices in USD, FOB San Luis Obispo, CA. Contact us for additional price breaks and for larger volume pricing.



Rod Wiper, NBR 90
Item# 02500437-125, WPBG4

Details:
  • Shaft Dia. 0.250", Bore Dia. 0.437", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 1/4
Bore 7/16
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 03120566-125, WPBG4
Cross Ref. #UR0243-E0

Details:
  • Shaft Dia. 0.312", Bore Dia. 0.566", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 5/16
Bore 9/16
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 03120626-156, WPBG4

Details:
  • Shaft Dia. 0.312", Bore Dia. 0.626", width 0.156"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 5/16
Bore 5/8
Width 5/32



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 03750625-125, WPBG4
Cross Ref. #BR1165-E0

Details:
  • Shaft Dia. 0.375", Bore Dia. 0.625", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 3/8
Bore 5/8
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 03750687-157, WPBG4
Cross Ref. #AR7923-E0

Details:
  • Shaft Dia. 0.375", Bore Dia. 0.687", width 0.157"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 3/8
Bore 11/16
Width 5/32



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 04690836-187, WPBG4

Details:
  • Shaft Dia. 0.469", Bore Dia. 0.836", width 0.187"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 15/32
Bore .836
Width 3/16



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 05620812-125, WPBG4
Cross Ref. #BR1043-E0

Details:
  • Shaft Dia. 0.562", Bore Dia. 0.812", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 9/16
Bore 13/16
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06250875-125, WPBG4
Cross Ref. #AR0633-E0

Details:
  • Shaft Dia. 0.625", Bore Dia. 0.875", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 200

Size Chart:

Inch
Shaft 5/8
Bore 7/8
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06250938-187, WPBG4
Cross Ref. #AR8081-E0

Details:
  • Shaft Dia. 0.625", Bore Dia. 0.938", width 0.187"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 5/8
Bore 15/16
Width 3/16



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06251062-250, WPBG4

Details:
  • Shaft Dia. 0.625", Bore Dia. 1.062", width 0.250"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 5/8
Bore 1 1/16
Width 1/4



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06251250-250, WPBG4

Details:
  • Shaft Dia. 0.625", Bore Dia. 1.250", width 0.250"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 5/8
Bore 1 1/4
Width 1/4



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06870937-125, WPBG4
Cross Ref. #AR7285-E0

Details:
  • Shaft Dia. 0.687", Bore Dia.0.937", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 100

Size Chart:

Inch
Shaft 11/16
Bore 15/16
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 06881003-187, WPBG4
Cross Ref. #AR0785-E0

Details:
  • Shaft Dia. 0.688", Bore Dia. 1.003", width 0.187"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 11/16
Bore 1
Width 3/16



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 07501000-125, WPBG4
Cross Ref. #AR0888-E0

Details:
  • Shaft Dia. 0.750", Bore Dia. 1.000", width 0.125"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 125

Size Chart:

Inch
Shaft 3/4
Bore 1
Width 1/8



Select Options:



  More Info



Rod Wiper, NBR 90
Item# 07501125-187, WPBG4
Cross Ref. #AR0897-E0

Details:
  • Shaft Dia. 0.750", Bore Dia. 1.125", width 0.187"
  • Material: Nitrile 90 black
  • Temp range: -40˚F to 250˚F

Stock Qty.: 0

Size Chart:

Inch
Shaft 3/4
Bore 1 1/8
Width 3/16



Select Options:



  More Info


All Pages: 1 2 3 4 5
