Welcome to AJR Seals retail store. Our current stock inventory of seals are available in our online shop and includes standard size AS568 o-rings, metric o-rings, rod wipers, u-cups, back-up rings, x-rings and oil seals.  We will be continuing to add items on a regular basis, as inventory changes. If you don't see what you are looking for now, please contact us for a quote. If you need higher volumes than are shown in the store, please request a quote and let us know your usage, we'll be happy to offer volume pricing.

Use the directory below to find the seals you need.

Please refer to our catalog pages, line card and technical info pages to see our full capabilities. Feel free to contact us with any other sealing needs, we are happy to work with either your drawing or a sample. If you have questions or requests, please use the contact form, email us directly at info@ajrseals.com or call 805-547-2025.



Rotary Shaft Seals

Rotary_Shaft_Seals
Our current oil seal stock available in smaller quantities in our line store. Styles and sizes added as inventory changes.
Rod Wipers/Nitrile 90 Wipers

rod_wipers
Press-in metal clad rod wipers in our standard Nitrile (Buna-N) 90 shore lip. Used to eliminate dust, dirt, moisture or contamination which can cause damage to cylinder walls and rods. Will extend seal life in hydraulic and pneumatic applications. The metal case offers greater life span and wear resistance. Can be special ordered in a softer Nitrile 70 shore lip. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).

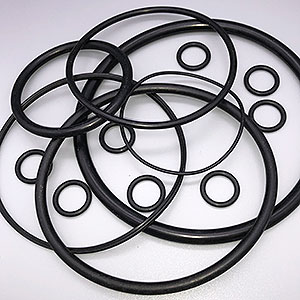

Nitrile 70 O-Rings

AS_568_O-rings,_Nitrile_70
Standard AS 568-series o-rings in Nitrile (Buna-N) 70 shore, the most commonly used general purpose o-ring material. Good for petroleum oils and fluids, silicone greases and oils, greases and air. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).
O-Rings, Nitrile 50

AS_568_o-rings_Nitrile_50
Sandard AS 568-series o-rings in Nitrile (Buna-N) 50 shore, a softer general purpose sealing compound effective for uneven applications and requiring less force to install into a groove. Good for petroleum oils and fluids, silicone greases and oils, greases and air. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).
HNBR 70 Green O-Rings

AS568_o-rings_hydrogenated_nitrile_70_durometer
Standard AS 568-series o-rings in Hydrogenated Nitrile (HNBR) 70 shore green; widely known for its physical strength and retention of properties after long term exposure to heat, oil and chemicals. Generally made in green to distinguish from Nitrile. Offers excellent resistance to automotive fluids and industrial chemicals, improved oxidation resistance, greater tensile strength, broader chemical resistance, greeter thermal stability compared to Nitrile. Temp. Range: -40˚F to 320˚F (-25˚C to 160˚C).
Polyurethane 70 O-Rings

Static_and_Pressure_Seals|O-Rings|Polyurethane_70_Standard_O-Rings
Sandard AS 568-series o-rings in Polyurethane (PU) 70 shore, one of the most versatile o-ring materials. Excellent resistance to oils, solvents, fats, greases and gasoline. Tear resistant and has excellent resistance to oxygen, ozone and sunlight and has excellent heat and cold resistance. Temp. Range: -90˚F to 220˚F (-68˚C to 107˚C). Not recommended for continuous use above 225˚F or in hot water above 175˚F.
Polyurethane 90 O-rings

AS568_o-rings_polyurethane_90_shore_o-rings
Standard AS 568-series o-rings in Polyurethane (PU) 90 shore, one of the most versatile o-ring materials, combining both hardness and elasticity and recommended for use in high pressure, high dynamic and abrasive applications. Excellent resistance to oils, solvents, fats, greases and gasoline. Outstanding tear resistance and has excellent resistance to oxygen, ozone and sunlight and has excellent heat and cold resistance. Temp. Range: -90˚F to 220˚F (-68˚C to 107˚C). Not recommended for continuous use above 225˚F or in hot water above 175˚F.
Metric O-Rings

metric_o-rings
Metric size o-rings in a variety of sizes and materials. Temp. Range: Various.
600-Style Fastener Seals

Static_and_Pressure_Seals|Bonded_Washers|Fastener_Seals_-_600-Style
600-style Fastener Seals in Nitrile (Buna-N) 70 shore and plated steel, a one-piece molded seal with sealing material mechanically locked into the metal retaining washer. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).
7500-Stye Thread Seals

thread_seals
7500-style Thread Seals in Nitrile (Buna-N) 70 shore and plated steel. a one-piece molded in place seal with rubber sealing material mechanically locked Ito the metal retaining washer making them safe and reliable for threaded devices. Often used for sealing specifically against threads and require no special fabrication style of bolt, screw or thread. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).
Bonded Washers

bonded_washers
400-style Bonded Washers in Nitrile (Buna-N) 70 shore and cold rolled steel. Inner sealing ring bonded to an outer metal retaining washer. Used in applications where stronger sealing is desired around a screw or bolt, as compared to conventional washers. Temp. Range: -40˚F to 250˚F (-40˚C to 120˚C).
PTFE Solid Back-Up Rings

PTFE_solid_back-up_ring
Standard AS 568 size PTFE solid back-up rings, designed to be used between an o-ring and the extrusion gap. Temp. Range: -95˚F to 480˚F (-70˚C to 250˚C).
